SM Carbide Burs - Cone Pointed End

Brand Name : KTS

Model Number : Cone Pointed End

Certification : ISO9001:2008

Place of Origin : SICHUAN,CHINA

MOQ : 100 Piece/Pieces

Price : $1-10/Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 250000 Piece/Pieces per Month

Delivery Time : 7-30 Day

Packaging Details : Standard export cartons

Type : SM

Name : CONE SHAPE CARBIDE BURRS

Material : TUNGSTEN CARBIDE

Grade : YG6X YG6 YG8 YG8X

Cut : SINGLE/DOUBLE/ALUMINUM

HARDNESS : HRC50-60/HARC92.5

Sample : SUPPLIED

LOGO : CUSTOMIZED

Certificate : ISO9001:2008

Type of Cut : DOUBLE/FINE/SINGLE/DIMOND/ALU CUT

Port : SHANGHAI/SHENZHEN/GUANGZHOU

Contact Now

SM Carbide Burs - Cone Pointed End

Product name :	Tungsten Carbide Rotary Files	shank diamter :	3mm/ 6mm
Brand :	KTS	Packing :	Set Packing
Head hardness :	HRA 89-92.5	speed of tool :	15000-45000Turn/min
Material :	Tungsten Carbide	Certificate :	ISO9001:2008

Product Main Characteristics:

1. It can be used to machine various metal (including all kinds of quenching steels)and nonmetal materials(such as marble,jade and bone) with hardness of the machined work piece <HRC 70;

2. Replace small grinding wheel with shank for majority of work without dust contamination;

3. Giving good machining quality and high smoothness,it can be used to process mold cavities of various forms with high accuracy;

4. Enjoying a long service life,it is ten times the high-speed steel cutter and more than 200 times the small grinding wheel in durability;

5. It is easy to grasp and operate, safe and reliable.It can reduce labor intensity and improve working condition;

6. With high economic benefit,it may have 10 times reduction in cost of comprehensive process.Generally, the carbide burrs is driven by a hand electric or pneumatic tool (can also be used on machine tools).Usually,the rotary speed of an electric or pneumatic tool is between 6,000~50,000 rpm.

Technical date

S.N.	MATERIAL
1a	Steel
1b	Hard steels
2	Stainless steel
3	Cast iron
4	Titanium
5	Nickel
6	Copper/Copper alloys
7	Aluminum
8	Plastics
9	Cement

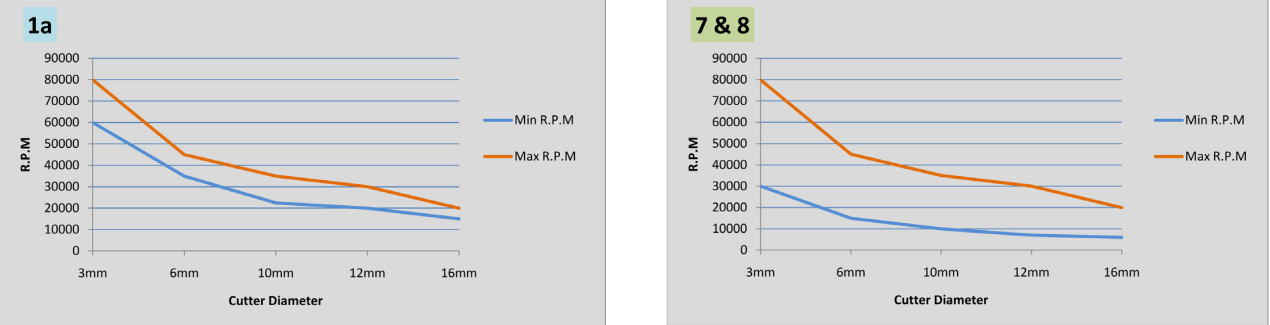

Guide to running speeds

mat nr. MAX RPM	3mm/0.123" 90,000	6mm/0.250" 50,000	10mm/0.375" 40,000	12mm/0.500" 35,000	16mm/0.625' 25,000
1a	60,000-80,000	35,000-45,000	22,500-35,000	20,000-30,000	15,000-20,000
1b	60,000-80,000	30,000-45,000	19,000-30,000	15,000-22,500	12,000-18,000
2	60,000-80,000	30,000-45,000	19,000-30,000	15,000-22,500	12,000-18,000
3	45,000-80,000	22,500-45,000	15,000-35,000	11,000-30,000	9,000-20,000
4	60,000-80,000	30,000-45,000	19,000-30,000	15,000-22,500	12,000-18,000
5	60,000-80,000	30,000-45,000	19,000-30,000	15,000-22,500	12,000-18,000
6	45,000-80,000	22,500-45,000	15,000-35,000	11,000-30,000	3,000-20,000
7	30,000-80,000	15,000-45,000	10,000-35,000	7,000-30,000	6,000-20,000
8	30,000-80,000	15,000-45,000	10,000-35,000	7,000-30,000	6,000-20,000
9	60,000-80,000	30,000-45,000	19,000-30,000	15,000-22,500	12,000-18,000
